Quick Details

  • Condition: New
  • Type: Coating Production Line
  • Substrate: Steel
  • Coating: Powder Coating
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: colo
  • Model Number: colo-2193
  • Voltage: 380V/220V
  • Power(W): 1.5KW
  • Dimension(L*W*H): W2000*H1900*D3100
  • Certification: CE
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Burner power: 100,000cal
  • Heating power: 380V/220
  • Fans amount: 1 pcs
  • Heat source: Oil Diesel
  • Max temp: 250 ℃

Packaging & Delivery

Packaging Details WOODEN CASE
Delivery Time Powder Coating Ovens are delivered in 15 days after paying.

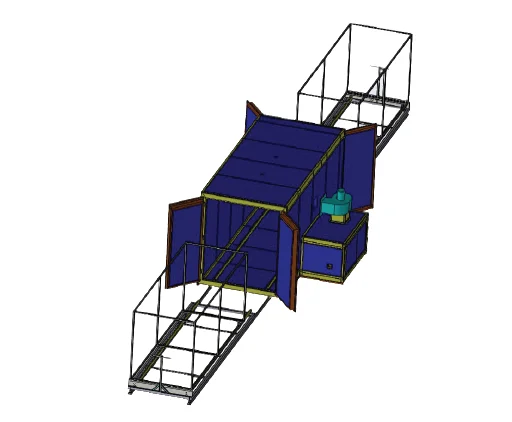

Features of Oil Diesel Fired Powder Coating Oven



Our  Oil Diesel Fired Powder Coating Ovens are designed in such a way so as to consume low power with a uniform temperature in the working space provided in the  Oil Diesel Fired Powder Coating Oven . Our CURING OVENS are specially built and designed for Powder Curing purposes. The powder is firstly melted at a required degree of temperature for a certain time. The product is then flown out, chemically reacting so that it is completely cured and ready to use for which it is designed.



  • Precise temperature control, furnace tolerance of +/- 5 degrees Celsius. Indirect heating system with a heat exchanger.
  • Hot air is transferred from the bottom up.
  • Heat exchangers used in seamless steel tubes 8x8 array, use the combustion liner 310S stainless steel



  • seamless pipe thickness of 3-4mm.



  • Closed-round clean efficient heat circulation system



  • Safely and efficiently cure previously applied  electrostatic powder coating oven
  • Energy-efficient designs save fuel and get to temperature quickly
  • Feature premium 100mm thick insulated wall and roof panels









  • Burner can be put in the side or top place, trolley designed as request




Specifications of  Oil Diesel Fired Powder Coating Oven



Model

colo-2193

Worksize dimensions

2000 width x 1900 height x 3100 depth

Overall dimensions

 2300 width x 2200 height x 3400 depth

Power supply

Diesel

Voltage/Frequency

380V/220V(50-60hz)

Warm-up time

15-30 min. (180° C)

Temperature stability

< ± 3.0-6°C

Temperature max.

250° C

Burner

Italy Riello, 10,0000cal

Circulation/ Air flow

Vertical ,Variable through holes on the walls

Ventilation performance

1131-2565m3/h

Motor power

1.5  kW

Warranty

12 months









The powder coating oven with The heating exchanger system in the heating room



Keep the inner of the oven clear and could get very good curing effect. The surface of the workpieces



will be very smooth with this type powder coating oven.



The heat exchanger specification

The heating room





Burner Italy Riello



Italy imported burner can be put in the side or top place.


A gas burner and a fan is required for heating the inside of the CURING OVENS. The curing temperature depends on the requirement of powder materials. The material is heated by the hot air in the curing oven which helps in heating the coating. The curing time may be short or long depending upon the load of the product. Curing Oven is dependable and flexible.





gas burners, completely automatic, with one stage settings fitted with:
- Fan with forward curve blades
- Cover lined with sound-deadening material
- Metallic and fixed air damper with adjustment
- Single phase electric motor 230 V, 50 Hz
- Combustion head fitted with:
- stainless steel head cone, resistant to high temperatures
- ignition electrodes
- ionisation probe
- gas distributor
- flame stability disk
- Adjustable air pressure switch, with graduated selector, to guarantee burner lock out in the case
of insufficient combustible air
- Protection filter against radio interference
- IP 40 electric protection level.





The PLC type controll sytem of the powder curing oven





Application



This Powder coating oven used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in the surface of the workpiece.







Packaging & Shipping







Our Services

  We are specialized in providing service of designing, manufacturing, assembling, commissioning and training for the powder coating line.





Company Information



We Exported batch powder coating booth, powder coating oven to Thailand, Philippines,Indonesia, Spain, Belgium,France, Iceland,Russia, Serbia,Sri Lanka, Australia, Canada, America, Egypt, Saudi Arabia,United Arab Emirates,Afghanistan,Nigeria, Bolivia,Venezuela, Peru,Ecuador, Brazil...
We can custom design powder coating booth and oven.





Buying Guides

The CURING OVEN must be sized according to the mass of the product, the capacity of the burner and also be able to handle the production volume. Any unevenness in temperature may lead to uneven coloring of the product. Therefore balancing the airflow and temperature in the CURING OVEN is very essential.



Contact the sales-------inquiry the price of the items you want-----the sales quote the price and make Proforma----the buyer make payment and note the sales------the sales arrange the delivery





Sales: Monica

Mobile: +86 15325719302

SKYPE:hicolo05
